Power supply
- 220-240V 50Hz
- 200V 50Hz
- 230V 60Hz
- 200V 60Hz
- 120V 60Hz
- 100V 50Hz
- 100V 60Hz
Lamps
LampsMetal iodide lamp powered by a special unit incor-porated in the fixture
- Cap SFc 10-4
-Color temperature 6.500 K
- Luminous flux 22.000 lm
- Average life 750 h - Type HMD 300W
- Cap SFc 10-4
- Color temperature 5.700 K
- Luminous flux 20.000 lm
- Average life 3.000 h
Power consumption
- 200-240V 50/60Hz version: 600VA at 230V 50Hz(standard 35μF power factor correction ).
- 00 -120V 50 /60Hz version: 900 VA at 120 V 60HZ.
Motors
- N° 9 microstepping motors with full microproces-sor control.

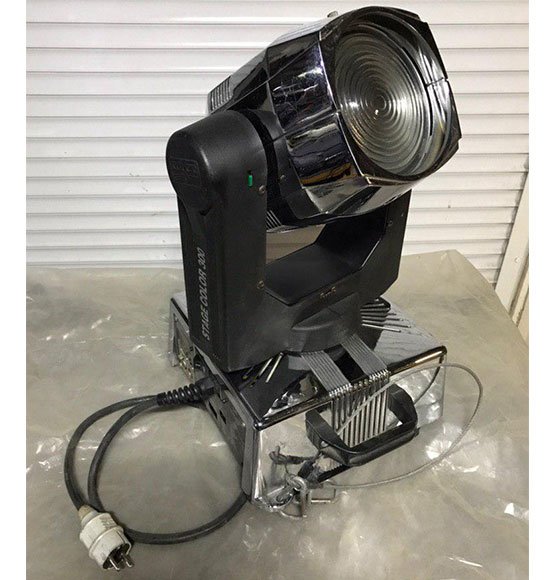

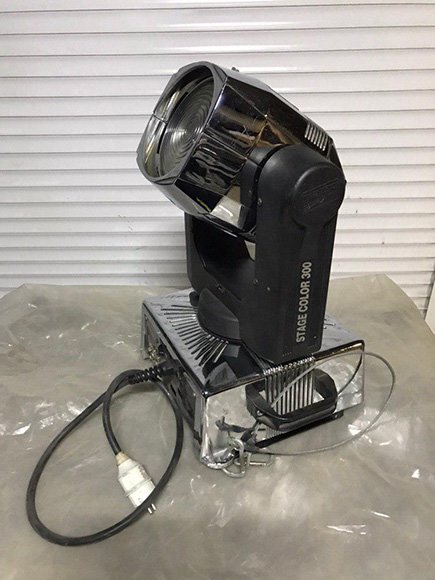

Stage Color 300 optical system
- High luminous efficiency elliptical reflector.
- Fresnel lens: diameter 152 mm, focal length 100 mm.
Channels
- N° 8 + 2 control channels
Inputs
Safety devices
- Dual-pole automatic overload cut-out.
- Power supply shuts off automatically in the caseof overheating or cooling system failure.
- Power shuts off automatically when coveris opened.
- wo safety wire anchor points.
Cooling
Forced ventilation cooling system using axialflow fans
Housing
- Made of diecast aluminium and steel with epoxypowder coating.
- wo lateral transport handles
- PAN and TILT lock system for transportationand maintenance.
Operating position
Will function in any position.
Stage Color 300 weights
- 00 -240 V version: 22.4 kg (49lbs 4oz).
- 00 -120 V version: 23.5 kg (51lbs 11oz).
